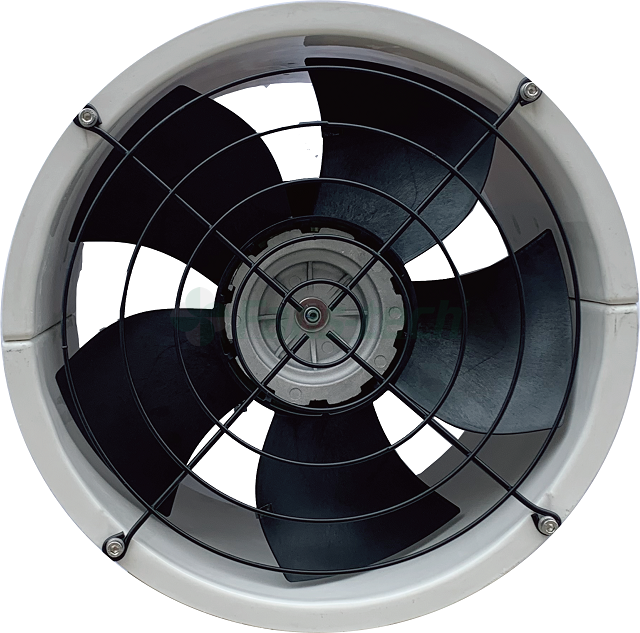

Large Air Flow
Being optimized with fluid simulation design, excellent performance and large air flow to ensure adequate air circulation.
High Strength
High-strength nylon propeller with anti-deformation, smooth blade shape and low operating load, which ensures low noise and help to improve the comfort of animals’ living environment.
Maintenance Free
Direct driving with high transmission efficiency and simple structure eliminates the trouble of regular belt replacement and reduces the using cost.
Energy-Efficient
IP55 waterproof and dust-proof protection, F class insulation, ultra-efficient motor with 85% efficiency enables animal producers to save breeding costs and increase profits.
High Durability
High molecular polymer fiberglass reinforced shell with light weight, anti-corrosion and good strength.
Long Durability
Powder-spayed metal bracket provides good structural strength, terrific anti-rust ability and long service life.
Large Air Flow
Being optimized with fluid simulation design, excellent performance and large air flow to ensure adequate air circulation.
High Strength
High-strength nylon propeller with anti-deformation, smooth blade shape and low operating load, which ensures low noise and help to improve the comfort of animals’ living environment.
Maintenance Free
Direct driving with high transmission efficiency and simple structure eliminates the trouble of regular belt replacement and reduces the using cost.
Energy-Efficient
IP55 waterproof and dust-proof protection, F class insulation, ultra-efficient motor with 85% efficiency enables animal producers to save breeding costs and increase profits.
High Durability
High molecular polymer fiberglass reinforced shell with light weight, anti-corrosion and good strength.
Long Durability
Powder-spayed metal bracket provides good structural strength, terrific anti-rust ability and long service life.
型号|Model No. | TF350A2058-00 | TF450A2058-00 | TF500A2070-00 | TF710B3081-00 | ||
规格 |Diameter of blade (inch) | 14" | 18" | 20" | 28" | ||
电机 | Motor | 电压 | Voltage (V) | 220 | 220 | 220 | 380 | |
频率 | Hertz (Hz) | 50 | 50 | 50 | 50 | ||
相数 | Phase | 1 | 1 | 1 | 3 | ||
功率 | Power (KW) | 0.12 | 0.18 | 0.37 | 0.75 | ||
输入电流 | Current @0Pa (A) | 0.5 | 1.0 | 1.6 | 2.5 | ||
性能参数 | Performance | 风量 | Airflow (m^3/hr.) | 0pa | 2800 | 4700 | 7050 | 16380 |
50pa | 2000 | 4000 | 6000 | 15000 | ||
100pa | / | 2840 | 4830 | 13080 | ||
特征 | Features | 驱动方式 | Drive | 直联驱动|Direct drive | ||||
风叶 | Propeller | 5片铝叶 | 5-Aluminum | |||||
外形尺寸 | Dimension (mm) | A01 | 400 | 500 | 550 | 760 | |
A02 | 300 | 350 | 350 | 400 |
型号|Model No. | TF350A2058-00 | TF450A2058-00 | TF500A2070-00 | TF710B3081-00 | ||
规格 |Diameter of blade (inch) | 14" | 18" | 20" | 28" | ||
电机 | Motor | 电压 | Voltage (V) | 220 | 220 | 220 | 380 | |
频率 | Hertz (Hz) | 50 | 50 | 50 | 50 | ||
相数 | Phase | 1 | 1 | 1 | 3 | ||
功率 | Power (KW) | 0.12 | 0.18 | 0.37 | 0.75 | ||
输入电流 | Current @0Pa (A) | 0.5 | 1.0 | 1.6 | 2.5 | ||
性能参数 | Performance | 风量 | Airflow (m^3/hr.) | 0pa | 2800 | 4700 | 7050 | 16380 |
50pa | 2000 | 4000 | 6000 | 15000 | ||
100pa | / | 2840 | 4830 | 13080 | ||
特征 | Features | 驱动方式 | Drive | 直联驱动|Direct drive | ||||
风叶 | Propeller | 5片铝叶 | 5-Aluminum | |||||
外形尺寸 | Dimension (mm) | A01 | 400 | 500 | 550 | 760 | |
A02 | 300 | 350 | 350 | 400 |
