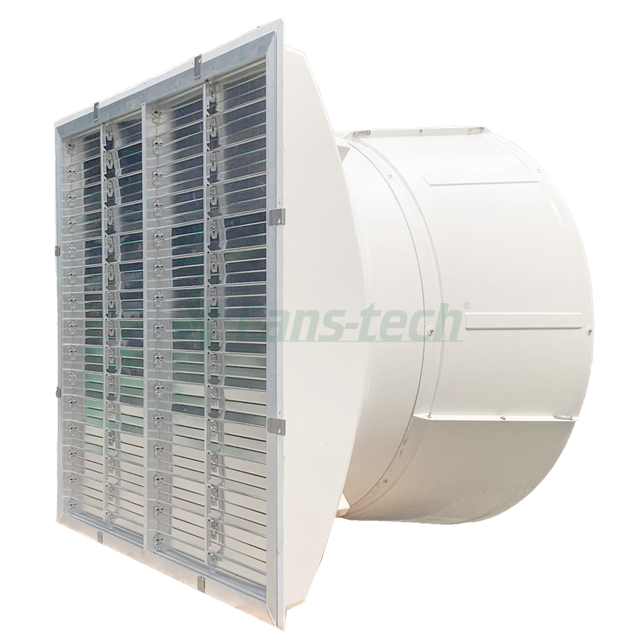

Application
Adapt to various farm building, especially for the application ranging from -75Pa to -100Pa. It is an ideal choice to provide ventilation supporting for breeding houses equipped with filters or deodorizing systems and high-rise multistory breeding buildings.
Large Air Flow
Being optimized with fluid simulation design, the high-strength die-cast airfoil aluminum propeller provides large air flow to ensure adequate air circulation in the breeding house.
Low Noise
The smooth propeller shape and high dynamic balance accuracy makes tiny friction coefficient between the blade and air combined with small resonance during running, which ensures low noise and improves the living comfort for the animals.
Maintenance Free
Direct driving with high transmission efficiency and simple structure eliminates the trouble of regular belt replacement and reduces the using cost.
High Efficiency
IP55 waterproof and dust-proof protection, F class insulation, ultra-efficient motor with 85% efficiency enables animal producers to save breeding costs and increase profits.
High Corrosion Resistance
The high-strength fiberglass reinforced house, powder-sprayed steel protective mesh, combined with SUS304 stainless steel accessories provide excellent corrosion resistance and durability.
Customer-oriented Option
Fixed speed version or variable frequency version, aluminium shutter or PVC shutter is optional to meet various needs.
Application
Adapt to various farm building, especially for the application ranging from -75Pa to -100Pa. It is an ideal choice to provide ventilation supporting for breeding houses equipped with filters or deodorizing systems and high-rise multistory breeding buildings.
Large Air Flow
Being optimized with fluid simulation design, the high-strength die-cast airfoil aluminum propeller provides large air flow to ensure adequate air circulation in the breeding house.
Low Noise
The smooth propeller shape and high dynamic balance accuracy makes tiny friction coefficient between the blade and air combined with small resonance during running, which ensures low noise and improves the living comfort for the animals.
Maintenance Free
Direct driving with high transmission efficiency and simple structure eliminates the trouble of regular belt replacement and reduces the using cost.
High Efficiency
IP55 waterproof and dust-proof protection, F class insulation, ultra-efficient motor with 85% efficiency enables animal producers to save breeding costs and increase profits.
High Corrosion Resistance
The high-strength fiberglass reinforced house, powder-sprayed steel protective mesh, combined with SUS304 stainless steel accessories provide excellent corrosion resistance and durability.
Customer-oriented Option
Fixed speed version or variable frequency version, aluminium shutter or PVC shutter is optional to meet various needs.
型号|Model No. | MPF625B2-077-00 | MPF915B3-077-00 | MPF1300B4-106-00 | MPF1450B4-120-00 | |||
规格 |Diameter of blade (inch) | 24" | 36" | 51" | 57" | |||
电机 | Motor | 电压 | Voltage (V) | 380 | 380 | 380 | 380 | ||
频率 | Hertz (Hz) | 50 | 50 | 50 | 50 | |||
相数 | Phase | 3 | 3 | 3 | 3 | |||
功率 | Power (KW) | 0.75 | 0.75 | 1.8 | 2.5 | |||
输入电流 | Current @0Pa (A) | 2.2 | 3.5 | 4.9 | 6.7 | |||
性能参数 | Performance | 风量 | Airflow (m^3/hr.) | -50pa | 15050 | 25800 | 42500 | 56800 | |
-75pa | 14060 | 23500 | 37500 | 52000 | |||
-100pa | 12960 | 19000 | 31000 | 45200 | |||
特征 | Features | 驱动方式 | Drive | 直联驱动|Direct drive | |||||
风叶 | Propeller | 5片铝叶 | 5-Aluminum | 4片铝叶 | 4-Aluminum | 5片铝叶 | 5-Aluminum | ||||
外形尺寸 | Dimension (mm) | A01 | 625 | 915 | 1290 | 1450 | ||
A02 | 373 | 463.5 | 390 | 430 | |||
A03 | 987 | 1182 | 1367 | 1640 | |||
A04 | 850 | 1270 | 1595 | 1860 | |||
A05 | 903 | 1270 | 1594 | 1742 | |||
A06 | 903 | 1270 | 1594 | 1742 | |||
洞口尺寸|Dimmersion of opening (mm) | 805×805 | 1150×1150 | 1510×1510 | 1670×1670 |
型号|Model No. | MPF625B2-077-00 | MPF915B3-077-00 | MPF1300B4-106-00 | MPF1450B4-120-00 | |||
规格 |Diameter of blade (inch) | 24" | 36" | 51" | 57" | |||
电机 | Motor | 电压 | Voltage (V) | 380 | 380 | 380 | 380 | ||
频率 | Hertz (Hz) | 50 | 50 | 50 | 50 | |||
相数 | Phase | 3 | 3 | 3 | 3 | |||
功率 | Power (KW) | 0.75 | 0.75 | 1.8 | 2.5 | |||
输入电流 | Current @0Pa (A) | 2.2 | 3.5 | 4.9 | 6.7 | |||
性能参数 | Performance | 风量 | Airflow (m^3/hr.) | -50pa | 15050 | 25800 | 42500 | 56800 | |
-75pa | 14060 | 23500 | 37500 | 52000 | |||
-100pa | 12960 | 19000 | 31000 | 45200 | |||
特征 | Features | 驱动方式 | Drive | 直联驱动|Direct drive | |||||
风叶 | Propeller | 5片铝叶 | 5-Aluminum | 4片铝叶 | 4-Aluminum | 5片铝叶 | 5-Aluminum | ||||
外形尺寸 | Dimension (mm) | A01 | 625 | 915 | 1290 | 1450 | ||
A02 | 373 | 463.5 | 390 | 430 | |||
A03 | 987 | 1182 | 1367 | 1640 | |||
A04 | 850 | 1270 | 1595 | 1860 | |||
A05 | 903 | 1270 | 1594 | 1742 | |||
A06 | 903 | 1270 | 1594 | 1742 | |||
洞口尺寸|Dimmersion of opening (mm) | 805×805 | 1150×1150 | 1510×1510 | 1670×1670 |
