FANS-TECH
Fast Cooling
Optimized with fluid simulation design, high-strength aluminum alloy propeller provides large air flow with few air volume loss on both sides, which enables fast cooling and quickly air quality improving in cowsheds.
Wide Airflow

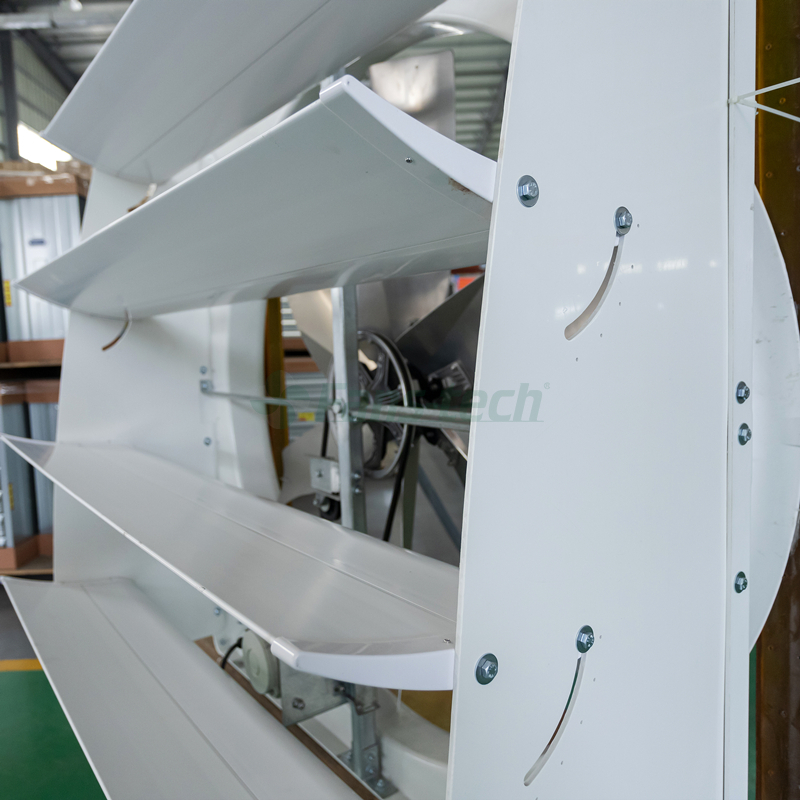

Long air blow distance and wide air supply area can be simply achieved by adjusting the airfoil deflectors instead of changing the original position of the fan.
Easy To Maintain
Adopte an automatic belt tensioner to extend debugging period; and the belt change is easily done without removing the propeller.
Power Saving
The use of ultra-efficient motor achieves high energy efficiency ratio to reduce power consumption and costs.
Anti-Corrosion
Corrosion resistance high-density fiberglass housing, with high strength and light weight.
Animal Comfort
Silently supply gentle wind at low operation speed to comfort the animals.
Customized Choise
Optional frequency converter to realize the stepless speed regulation of the fan.
Application
Widely used in cowsheds and stables for air circulation, cooling, and livestock beds drying. An atomizer can be fitted with to achieve the effects of humidification and suppression of dust.
Fast Cooling
Optimized with fluid simulation design, high-strength aluminum alloy propeller provides large air flow with few air volume loss on both sides, which enables fast cooling and quickly air quality improving in cowsheds.
Wide Airflow
Long air blow distance and wide air supply area can be simply achieved by adjusting the airfoil deflectors instead of changing the original position of the fan.
Easy To Maintain
Adopte an automatic belt tensioner to extend debugging period; and the belt change is easily done without removing the propeller.
Power Saving
The use of ultra-efficient motor achieves high energy efficiency ratio to reduce power consumption and costs.
Anti-Corrosion
Corrosion resistance high-density fiberglass housing, with high strength and light weight.
Animal Comfort
Silently supply gentle wind at low operation speed to comfort the animals.
Customized Choise
Optional frequency converter to realize the stepless speed regulation of the fan.
Application
Widely used in cowsheds and stables for air circulation, cooling, and livestock beds drying. An atomizer can be fitted with to achieve the effects of humidification and suppression of dust.
型号 Model No. | YNF1400B2-081-00 | YNF1830B2-106-00 | ||||
规格 |Diameter of blade (inch) | 55" | 72" | ||||
电机 | Motor | 电压 | Voltage (V) | 380 | 230 | 380 | 230 | |
频率 | Hertz (Hz) | 50 | 60 | 50 | 60 | ||
相数 | Phase | 3 | 3 | ||||
功率 | Power (KW) | 1.1 | 2.2 | ||||
输入电流 | Current @0Pa (A) | 3.1 | 4.6 | ||||
性能参数 | Performance | 风量 | Airflow (m^3/hr.) | 45000 | 85200 | |||
风量 | Airflow ( CFM) | 26500 | 50180 | ||||
能效比 | Efficiency (m^3/hr)/W | 36 | 39.6 | ||||
能效比 | Efficiency ( cfm/Watt) | 21.2 | 23.3 | ||||
特征 | Features | 驱动方式 | Drive | 皮带传动|Belt driven | ||||
皮带 | Belt | 日本三星带自动张紧器 | Mitsuboshi with automatic tensioner | |||||
风叶 | Propeller | 6片铝叶 | 6-Aluminum | |||||
导流板 | Deflector | 4 | 5 | ||||
外形尺寸 | Dimension (mm) | A01 | 740 | 1100 | |||
A02 | 1400 | 1830 | ||||
A03 | 1600 | 2050 | ||||
A04 | 1600 | 2050 |
型号 Model No. | YNF1400B2-081-00 | YNF1830B2-106-00 | ||||
规格 |Diameter of blade (inch) | 55" | 72" | ||||
电机 | Motor | 电压 | Voltage (V) | 380 | 230 | 380 | 230 | |
频率 | Hertz (Hz) | 50 | 60 | 50 | 60 | ||
相数 | Phase | 3 | 3 | ||||
功率 | Power (KW) | 1.1 | 2.2 | ||||
输入电流 | Current @0Pa (A) | 3.1 | 4.6 | ||||
性能参数 | Performance | 风量 | Airflow (m^3/hr.) | 45000 | 85200 | |||
风量 | Airflow ( CFM) | 26500 | 50180 | ||||
能效比 | Efficiency (m^3/hr)/W | 36 | 39.6 | ||||
能效比 | Efficiency ( cfm/Watt) | 21.2 | 23.3 | ||||
特征 | Features | 驱动方式 | Drive | 皮带传动|Belt driven | ||||
皮带 | Belt | 日本三星带自动张紧器 | Mitsuboshi with automatic tensioner | |||||
风叶 | Propeller | 6片铝叶 | 6-Aluminum | |||||
导流板 | Deflector | 4 | 5 | ||||
外形尺寸 | Dimension (mm) | A01 | 740 | 1100 | |||
A02 | 1400 | 1830 | ||||
A03 | 1600 | 2050 | ||||
A04 | 1600 | 2050 |
